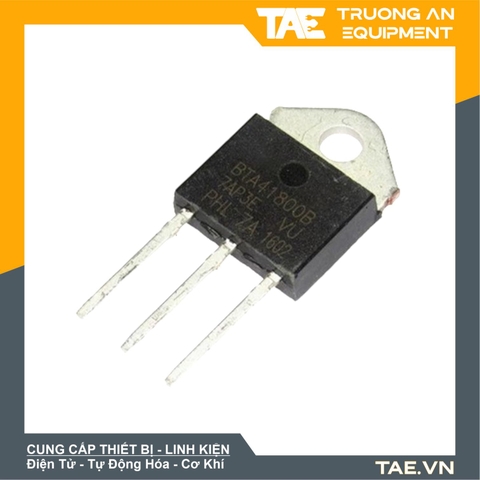

Product Information


  • Gate Trigger Current Max (QI), Igt: 50mA
  • Gate Trigger Voltage Max Vgt: 1.5V
  • Holding Current Max Ih: 80mA
  • MSL: -
  • No. of Pins: 3
  • On State RMS Current IT(rms): 40A
  • Operating Temperature Max: 125°C
  • Peak Gate Power: 1W
  • Peak Non Rep Surge Current Itsm 50Hz: 400A
  • Peak Repetitive Off-State Voltage, Vdrm: 800V
  • SVHC: No SVHC (17-Dec-2014)
  • Triac Case Style: TOP-3
