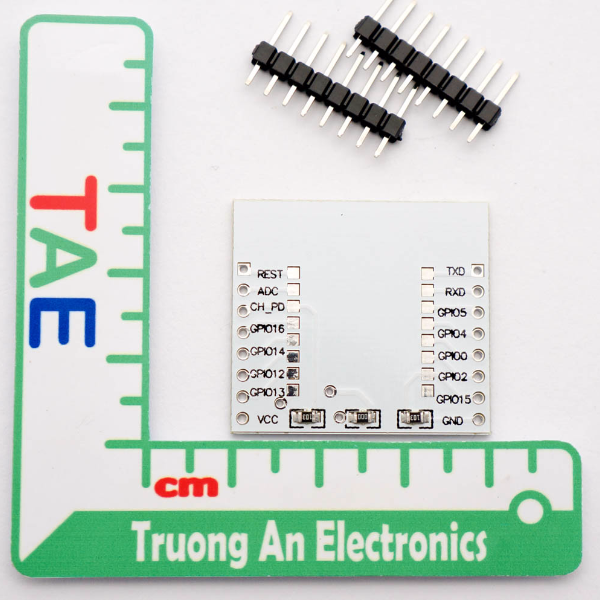

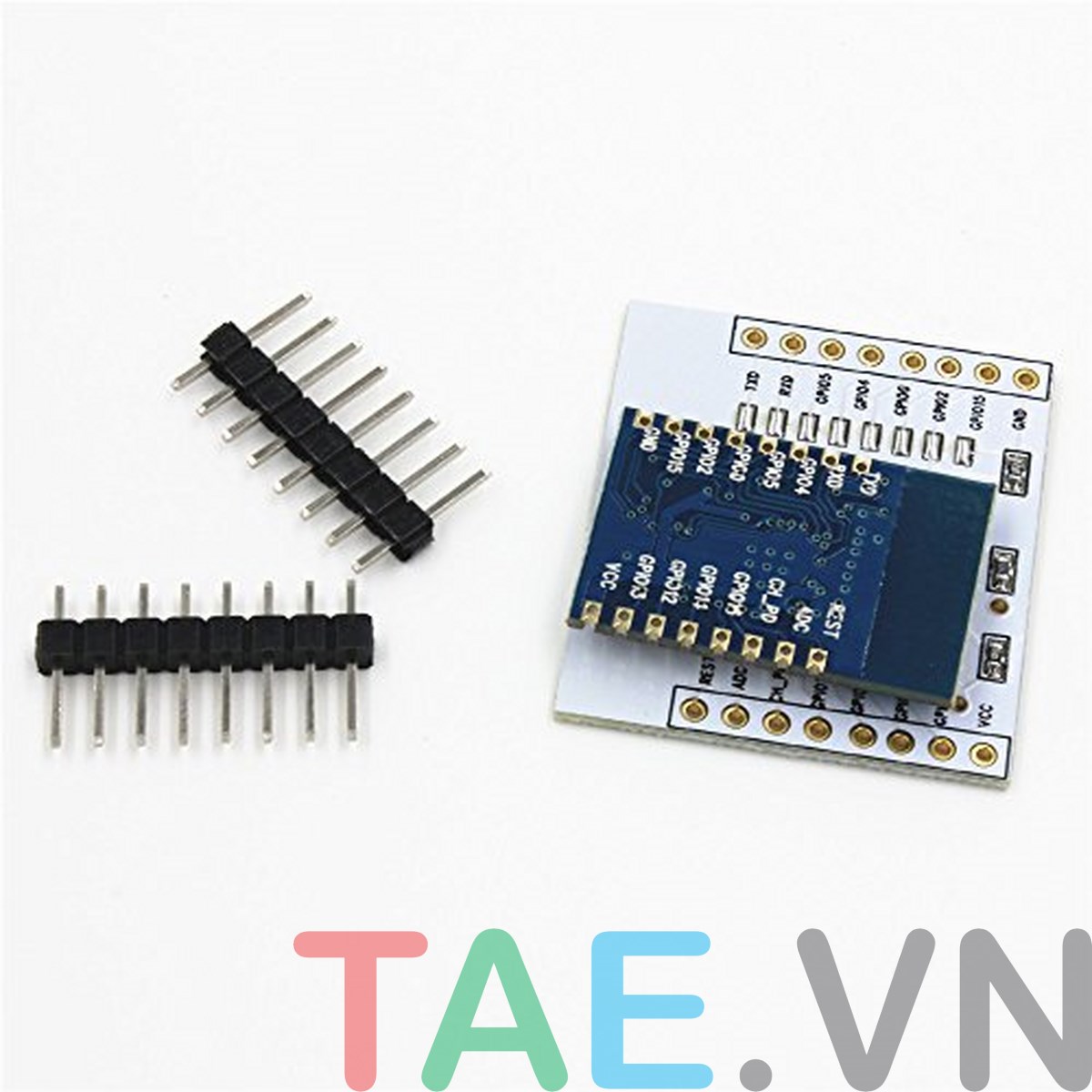

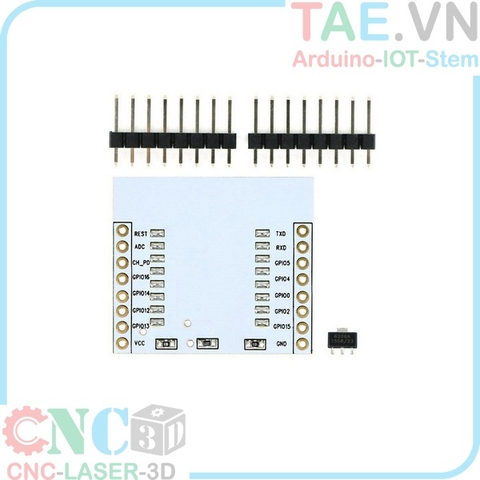

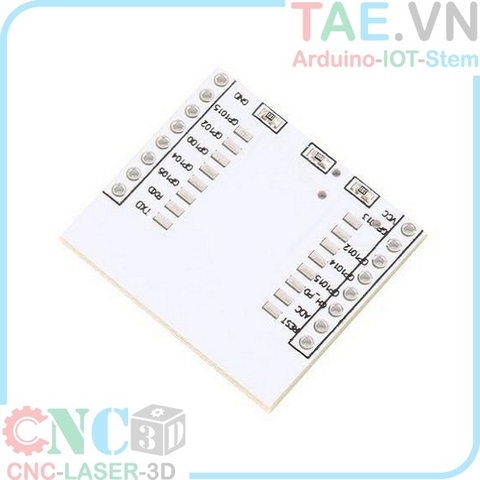

ESP8266-07/12 Adapter



Features

  • Easy breakout of all ESP07/12 pins
  • Custom designed pin headers take minimum real-estate on breadboard
  • Plug-n-play solution. No external pull-up / pull-down resistor necessary.
  • One button reset/program mode selection (short press for reset, long press to enter program mode)
  • On-board 3.3v regulator with appropriate heatsink. ESP8266 can take as much as 300mA, that could mean 0.5W dissipation @5V input. The amount of heat cannot be overlooked.
  • On-board UART (UART0) connector with FTDI Basic compatible pinout for easy programming and debugging
  • All parts from reputable supplier. 100% tested.
