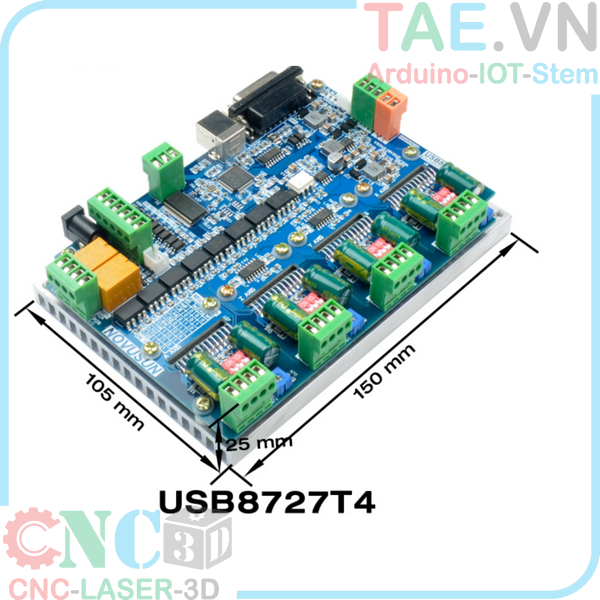

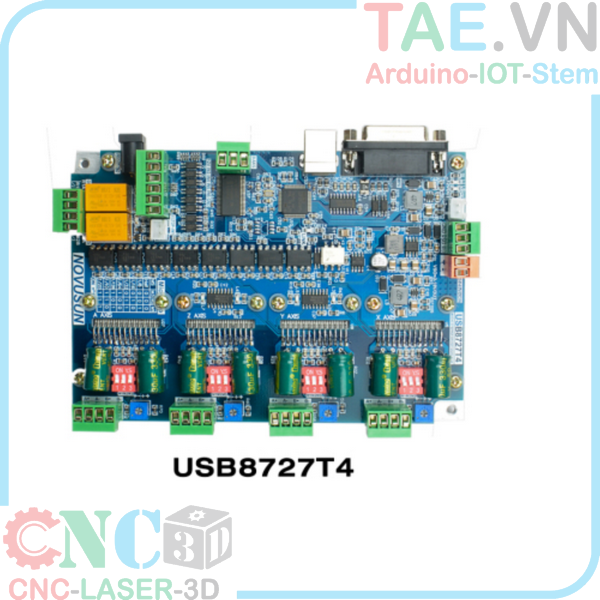

Bộ Điều Khiển USB Mach3 CNC USB8727T4

 Bộ Điều Khiển USB Mach3 CNC USB8727T4 is a USB controller driver integrated board based on mach3 developed by our engineers after years of hard work . The product communicates via USB . The host computer supports mach3 and has rich input and output channels. It supports up to 4- axis drive + 1 axis external expansion control signal. , driver uses Sanyo LV8727 chip, each channel can drive 4A the 2 -phase stepping motor, up to 128 segments can be used for engraving machine, CNC milling cnc equipment , high control accuracy. The highest single-axis output pulse is 200KHz . The USB8727T4 CNC system adopts the ARM design framework. The design is reasonable, the control is reliable, and the operation is convenient.

- USB communicati

- Support mach3 ;

- 5- channel optical coupling isolation common digital input interface;

- 1 optical coupling isolation common digital output interface;

- 1 channel 0-10V spindle speed analog output interface (modified PWM output);

- 2- way relay control output interface;

- Support up to 5 channels of stepper motor control, single channel up to 200KHz control pulse output;

- ARM master chip;

-The main control device is a 24-36V DC power input, and the power requirement is not less than 200W ;

- Equipped with a hand pulse interface, supports universal hand pulses on the market, and supports digital display hand pulses independently developed by our company;

- Support quick operation of specifying the operating position;
