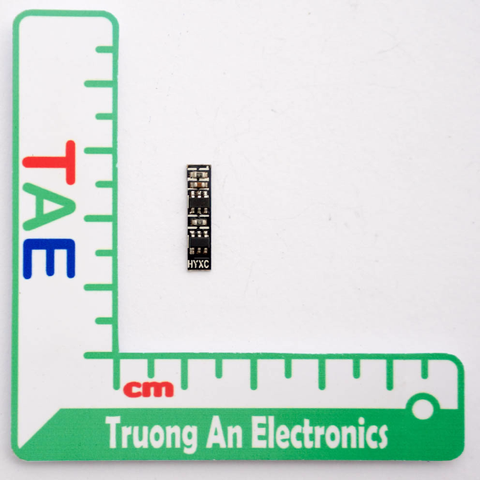

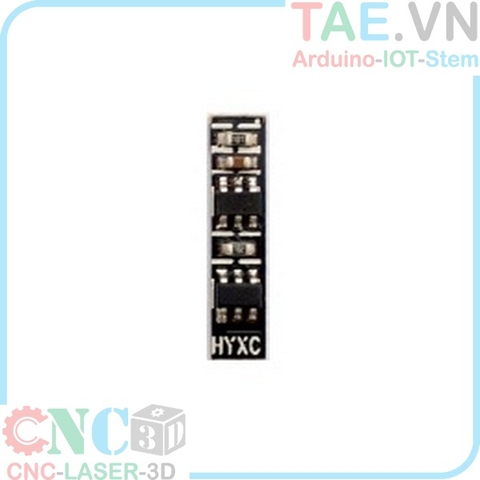

Mạch Sạc Pin Lithium 18650 1A

Tình trạng: Đang Cập Nhật | SKU: 893261100184
Thương hiệu: Đang cập nhật
25.000₫
Overcharge protection, over-discharge protection, short circuit protection, overcurrent protection    Size: about 18mm * 3mm * 1.8mm (H) Wiring: B + positive terminal of the battery, then the battery's negative B-, P + is both a positive output is entered, P- both negative...
- +
Liên Hệ Check Hàng
Thêm vào yêu thíchThêm vào yêu thích Đã yêu thíchĐã yêu thích

Overcharge protection, over-discharge protection, short circuit protection, overcurrent protection



 Size: about 18mm * 3mm * 1.8mm (H)

Wiring: B + positive terminal of the battery, then the battery's negative B-, P + is both a positive output is entered, P- both negative output is input.

Technical Parameters:



Performance

Typical values

Electric current

Continuous operating current

2-3A

Single battery consumption (self-consumption)

≤6uA

Maximum continuous discharge current

3A

Overcharge protection

Overcharge detection voltage

4.25 V ± 0.025V

Overcharge detection delay time

150-500 ms

Overcharge recovery voltage

4.0V ± 0.025V

Over-discharge protection

Overdischarge detection voltage

2.5.00V ± 0.1V

Over discharge detection delay time

50-150ms

Over-discharge recovery voltage

3.0V ± 0.10V

Overcurrent protection

Overcurrent detection voltage

0.08V

Over current detection current

3A-4A

Overcurrent detection delay time

5ms-15ms

Restore state

Automatic recovery

Short circuit protection

Detection Status

External short circuit

Detection delay time

≤50us

Restore state

Automatic recovery

Resistance

Protection lines (MOSPET)

≤60mΩ

temperature

Operating temperature range

-40 ~ + 50 ℃

Storage temperature range

-40 ~ + 90 ℃
