Nguồn Laser Khắc Fiber JPT Model LP 20W/30W/50W

Specifications of the LP series fiber laser

Characteristic\Laser Type

Unit

E-20-LP-S

E-30-LP-S

E-50-LP-L

M²

<1.5

<1.5

<1.8

Delivery Cable Length

m

2

2

3

Average Output Power

W

>20

>30

>50

Maximum Pulse Energy

mJ

0.8

0.8

1.25

Pulse Frequency Range

kHz

1-600

1-600

1-600

Full Power Frequency Range

kHz

25-600

37-600

40-600

Pulse Width

ns

200

200

200

Output Power Instability

%

<5

<5

<5

Cooling Method

Air Cooled

Air Cooled

Air Cooled

Power Supply Voltage

V

24（DC）

24（DC）

24（DC）

Power Consumption

W

<110

<150

<220

Power supply current requirement

A

>5

>7

>10

Central Wavelength

nm

1064

1064

1064

Emission Bandwidth（FWHM）

nm

<15

<15

<15

Polarization

Random

Random

Random

Anti-Reflection Protection

Yes

Yes

Yes

Output Beam Diameter

mm

7.0±0.5

7.0±0.5

7.0±0.5

Output Power Tuning Range

%

0~100

0~100

0~100

Ambient Temperature Range

°C

0~40

0~40

0~40

Storage Temperature Range

°C

-10~60

-10~60

-10~60

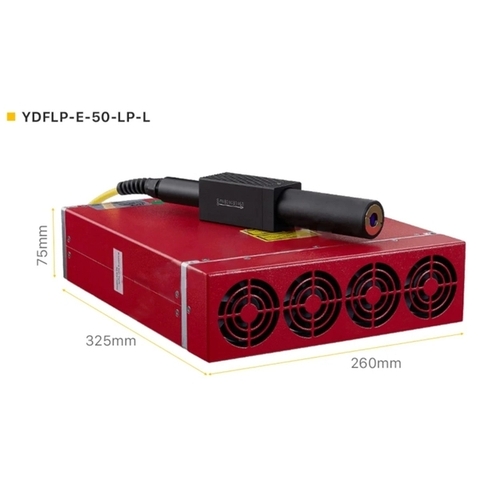

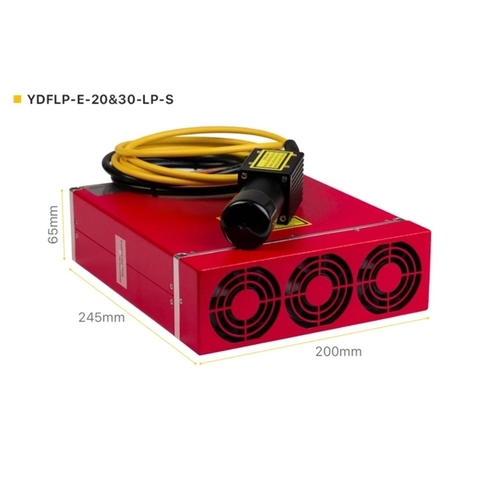

Dimensions

mm

245*200*65

245*200*65

325*260*75

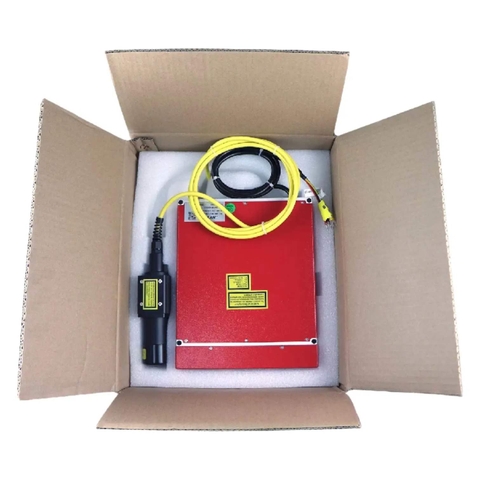

Package Size

mm

365*310*135

365*310*135

580*400*140

Weight

Kg

Net：3.75
Gross：4.35

Net：4.25
Gross：4.8

Net：8.2
Gross：9.5
