• Rated load: 10A 250VAC/28VDC,10A 125VAC/28VDC,10A 125VAC/28VDC

  •  Contact resistance: <=100m (ohm)

  •  Electrical life: 100,000

  •  Mechanical life: 10,000,000

  •  Coil rated voltage: 3-48VDC

  •  Coil power: 0.36W, 0.45W

  •  Coil pick-up voltage: <=75%

  •  Coil drop-out voltage: >=10%

  •  Ambient temperature: -25 degrees Celsius to +70 degrees Celsius

  •  Coil and contacts:1500VAC/min

  •  Contact and contacts: 1000VAC/min

  •  Insulation resistance: >=100M ohm

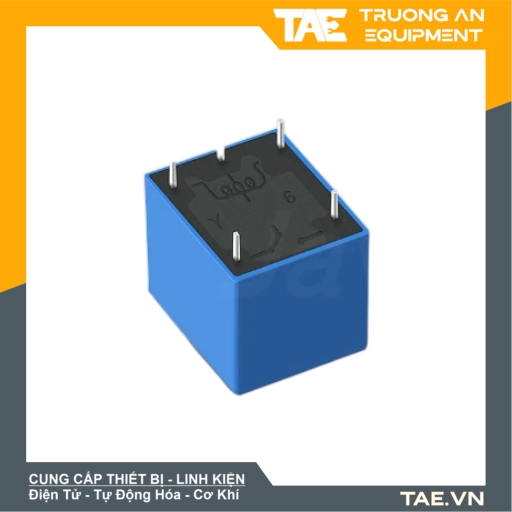

  •  Mounting form: PCB

  •  Weight : 10 g

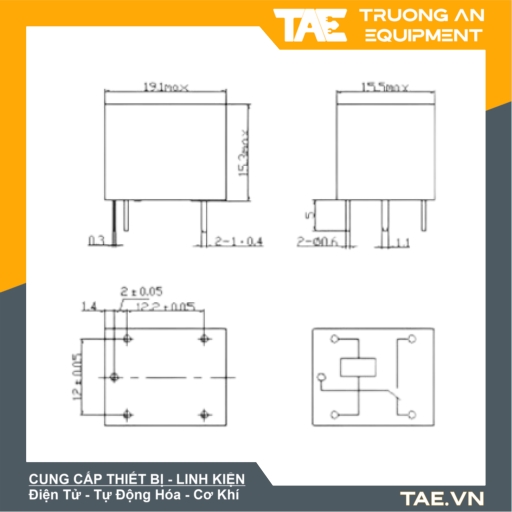

  •  Outline dimensions :19mm x 15.5mm x 15mm
