- Khoảng điện áp đo: DC4.5 ~ 40V
- Ngõ ra: Cổng Usb
- Điện áp ngõ vào: 6.5 ~ 40V
- Điện áp ngõ ra: 5.0V
- Dòng điện ngõ ra: 2A
- A key ( "Output Enable" button) switch USB output, a key ( "Low Power" button) to enter the ultra-low power
- Car voltmeter can be self-calibration, will never exist without accurate voltmeter problem!!
- with reverse polarity protection, reverse polarity does not burn
- with over-current, over-temperature protection
- with USB Power Indicator
- The band terminals, easy access lines
- The high efficiency, low ripple

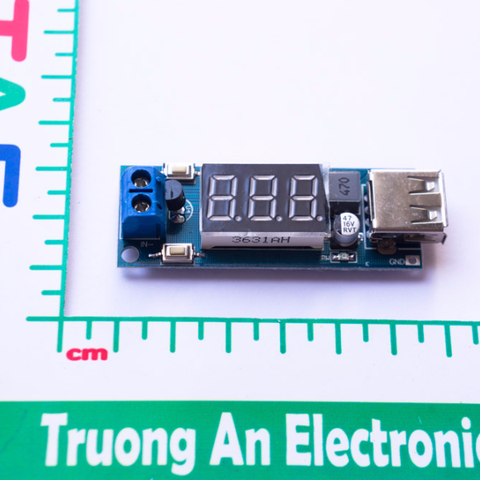

- Kích thước: 58 x 21 x 10mm
- Trọng lượng: 13g
Sơ đồ nối dây
