Bộ Điều Khiển Máy CNC NCH-02

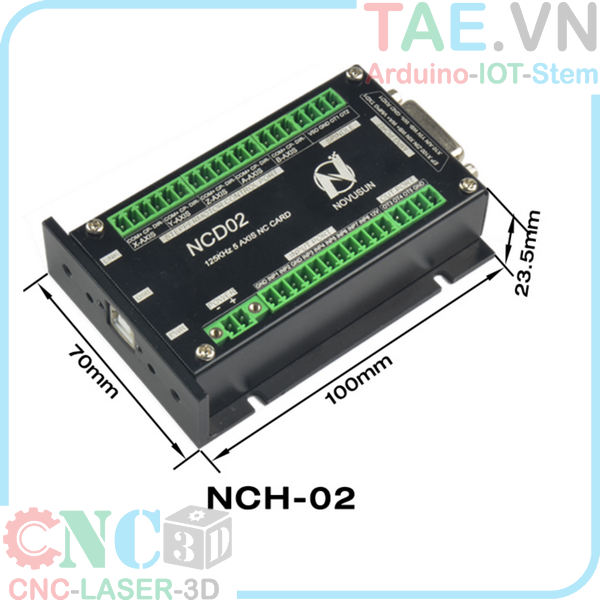

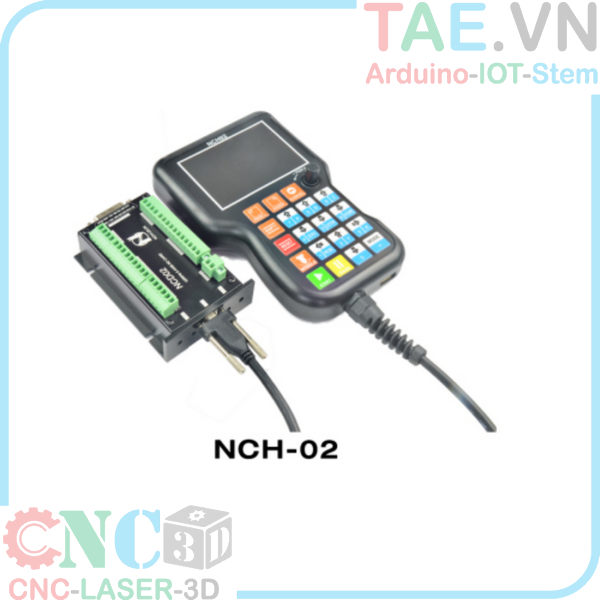

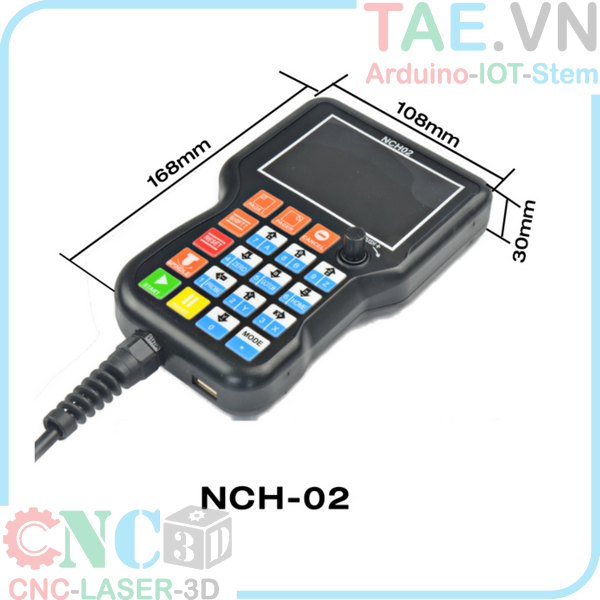

 Bộ Điều Khiển Máy CNC NCH-02  is a 5-axis handheld independent motion controller independently developed by our company with high control accuracy. The highest single-axis output pulse is 150KHz, and it supports common stepper motors. NCH02 is an independent system that does not require computer cooperation, and only needs to read the G code to execute through the U disk. The NCH02 CNC system adopts the ARM+ARM design architecture. The upper computer ARM completes the man-machine interface and code analysis part, and the lower computer ARM completes the underlying algorithm and control pulse generation part. The two communicate via USB. The design is reasonable, the control is reliable, and the operation is convenient. Support the versatile FANUC compatible G instruction set.

-  8-channel optocoupler isolation common digital input interface;

- 5-channel optical coupling isolation common digital output interface;

- 1 0-10V spindle speed control analog output interface (can be modified to PWM output);

-  Support up to 5 channels of stepper motor control, single channel up to 150KHz control pulse output;

-  ARM main control chip;

-  3,5 inch TFT screen, resolution 480*320;

- 19 operation keys;

-  The main control equipment is 24V power input, and the current capacity requirement is not less than 0.5A;

- Support U disk to read G command, G command file size is not required;

- Equipped with MPG interface to support general MPG on the market.

- Support single-axis manual jog and linked operation of panel buttons;

- Support the operation of quickly specifying the operating position;

- Support multiple coordinate systems;
