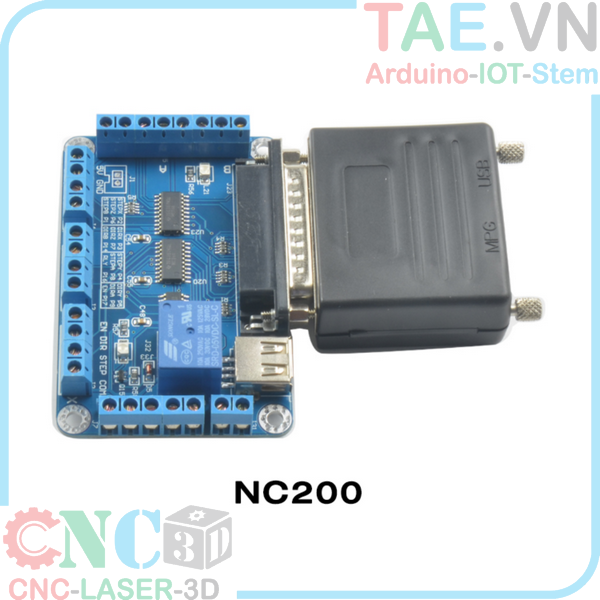

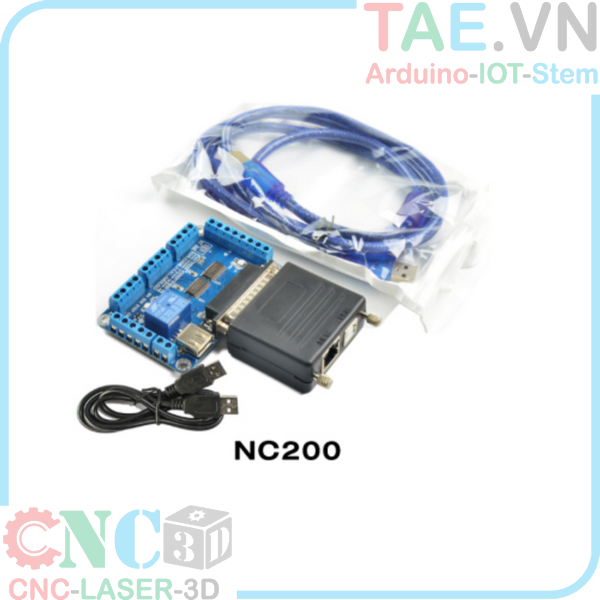

Mạch Điều Khiển CNC USB Mach 3 NC200

 Mạch Điều Khiển CNC USB Mach 3 NC200 is a 6- axis motion controller developed by our company after 4 years of research and development ; the control cycle of each position is 2 milliseconds, and the control accuracy is high. The highest single-axis output pulse is 200KHz , the pulse width is adjustable, and it supports common stepper motors and servo motors.

NC200 supports mach3 control, perfectly supports serial electronic handwheels, and uses USB communication to communicate with computers . The control interface adopts the parallel port mode, which is convenient for the transformation of the old parallel port machine system.

NC200 numerical control system adopts ARM design framework, ARM completes parts including communication, code analysis, underlying algorithm and control pulse generation. The design is reasonable, the control is reliable, and the operation is convenient.

Products are widely used in stone engraving machines, jade engraving machines, wood engraving machines, advertising engraving machines, CNC milling machines, intelligent grinding machines, automated production lines and other applications.


- USB communication;

- Compatible with parallel port interface control output;

- Support mach3 ;

- 5 ordinary digital input interfaces;

- 3 ordinary digital output interfaces;

- 1 channel PWM output;

- Support up to 6 channels of stepper motor control, single channel up to 300KHz control pulse output;

- ARM master chip;

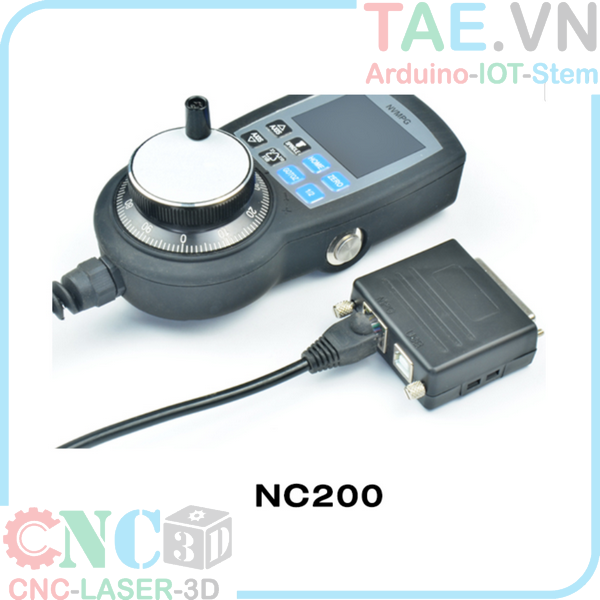

- Equipped with a hand pulse interface, supporting the digital display hand pulse independently developed by our company;
