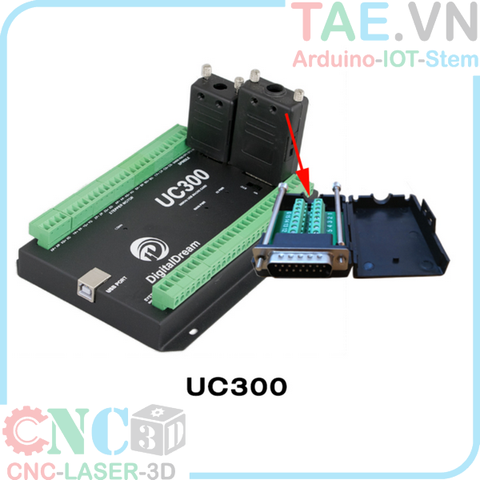

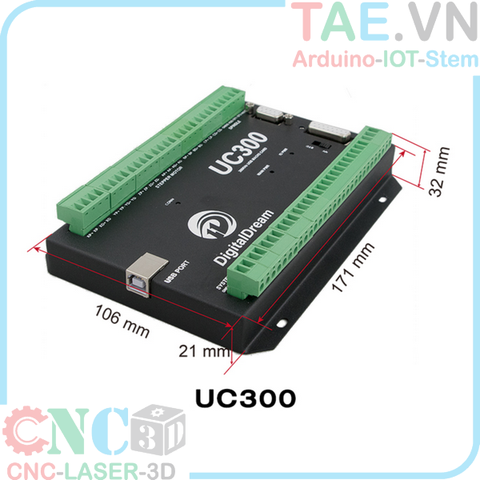

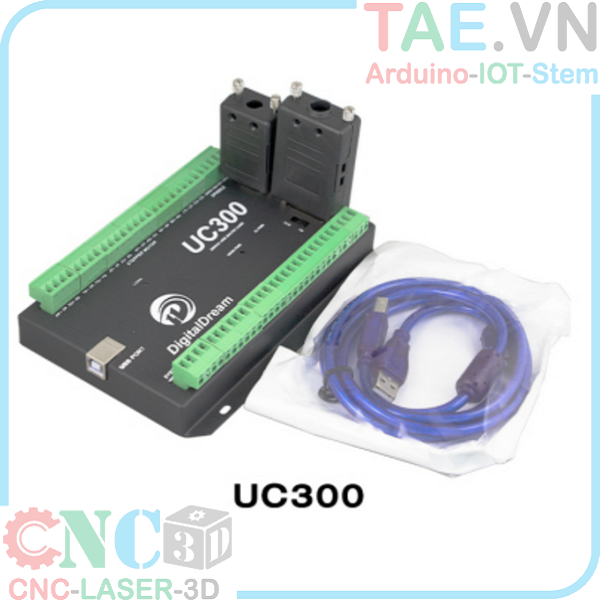

Bộ Điều Khiển USB Mach3 UC300

UC300 is a 3-6 axis high-performance motion control card based on MACH3 software. Zhongliantuo Numerical Control Co., Ltd. lasted four years of research, development and debugging, and finally upgraded to this version, with stable performance, high control accuracy, and strong anti-interference ability. The highest output pulse of UC300 is 300Khz, the pulse width is adjustable, and the differential connection can be connected to standard stepping and servo motor drives; UC300 is connected to a computer through a standard USB interface to communicate with the MACH3 software, the operation is simple and reliable, but it is recommended to use shielded cables. Connect to reduce the chance of interference.

UC300 numerical control system adopts ARM design framework, ARM completes parts including communication, code analysis, underlying algorithm and control pulse generation. The design is reasonable, the control is reliable, and the operation is convenient.
This manual introduces the operation method of UC300, the connection with the machine tool and the operating procedures. Through a large number of easy-to-understand illustrations and examples, users can learn to use the UC300 control card more quickly.

-  Support 3-6 channels of step/servo motor control (X/Y/Z/A/B/C), single channel up to 300KHz control pulse output;

-  Connect to a computer via USB to communicate with MACH3 software;
- The power input of the main control device is 24VDC, and the current capacity requirement is not less than 1A;
-  The IO port power input is 24VDC, and the current capacity requirement is not less than 1A;
-  The controller system provides a voltage of 24VDC and a current of not less than 1A to all IO ports, and all IO ports do not need to be configured with external power supplies, such as connecting relays;
- 12 optically isolated digital input interfaces, 10 optically isolated digital input interfaces;
- 1 0-10V spindle speed control analog output interface (can be modified to PWM output);
-  ARM main control chip;
- Equipped with MPG interface, supports our company's digital display MPG, and also supports the standard universal MPG on the market.
