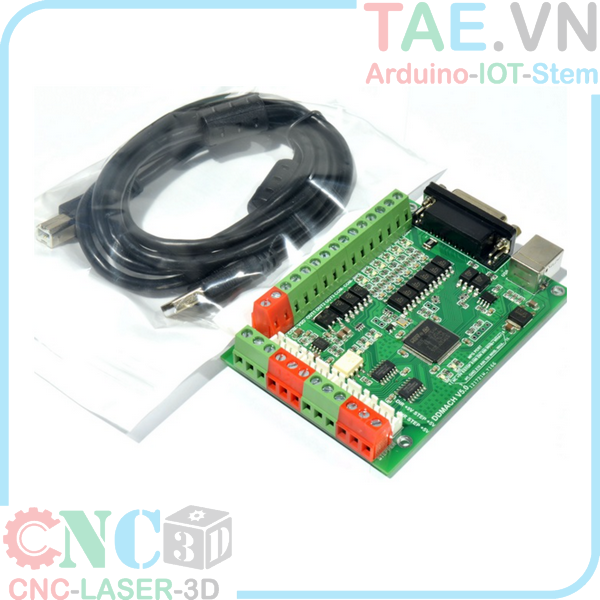

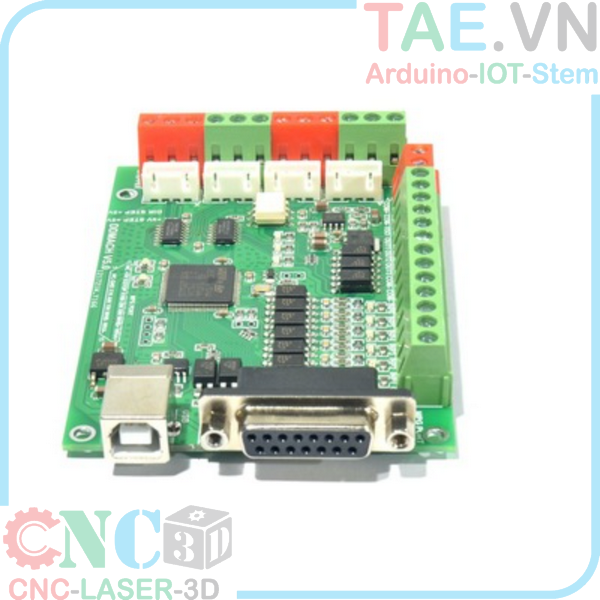

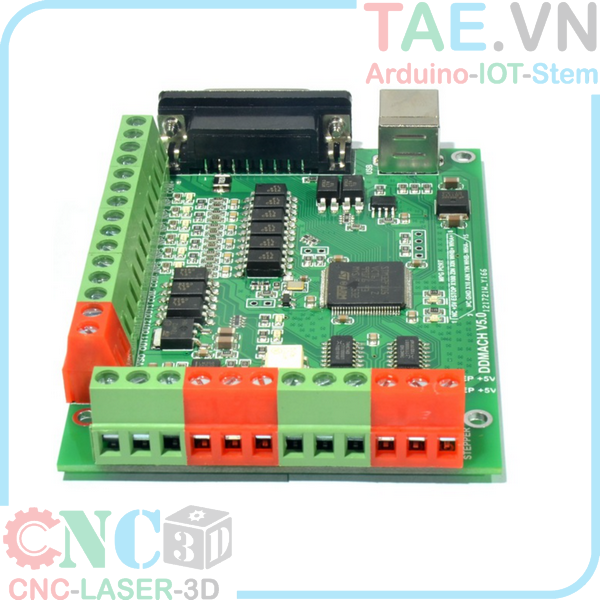

Bộ Điều Khiển USBmach3 DDMACH3 CNC

 Bộ Điều Khiển USBmach3 DDMACH3 CNC is a 4- axis motion controller developed by our company after 4 years of research and development ; the control cycle of each position is 2 milliseconds, and the control accuracy is high. The highest single-axis output pulse is 125KHz , the pulse width is adjustable, and it supports common stepper motors and servo motors.

DDMACH supports mach3 control, perfectly supports electronic handwheels, and uses USB communication to communicate with the computer . The control interface adopts the parallel port mode, which is convenient for the transformation of the old parallel port machine system.

NC200 numerical control system adopts ARM design framework, ARM completes parts including communication, code analysis, underlying algorithm and control pulse generation. The design is reasonable, the control is reliable, and the operation is convenient.


- USB communication;

- Compatible with parallel port interface control output;

- Support mach

- 5 ordinary digital input interfaces;

- 3 ordinary digital output interfaces;

- 1 channel PWM output;

- Support 4-channel stepper motor control, single-channelcontrol pulse outputup to 125 KHz ;

- ARM master chip;

- Equipped with MPG interface, supports standard MPG;
