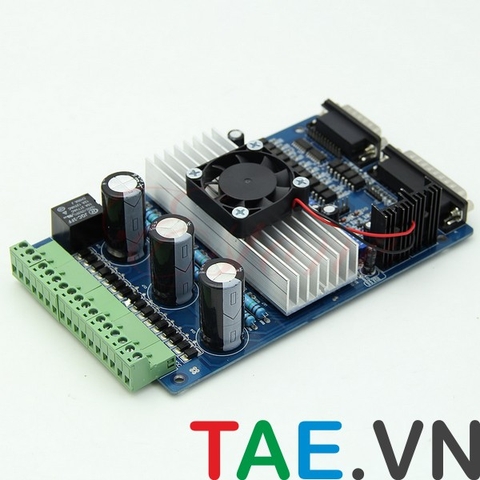

Product Features:
· Toshiba TB6560AHQ Chip - High power, maximum 3.5A drive current Chipset
· 1-1 / 16 Microstep setting - Higher Accuracy and Smoother operation than Standard 1, 1/2 step
· Adjustable drive current Settings for each axis - 25%, 50%, 75%, 100% of Full current CAN be set for Different Stepper motors
· Overload, over-current and over-temperature Safety - Full Protection for your Computer and Peripheral Equipment
· On board current Switching - Power output CAN be set ACCORDING to specific user Requirement
· Full Closed-type Optical Isolation to Protect the user's Computer and Equipment
· Relay Spindle interface -. Outputs Max 36V 7.5A for Spindle motors or coolant Pump (only one device CAN be Powered by this output!)
· 4 Channel inputs interface-Can be Used for XYZ limit and Emergency stop
· Professional Design - Two Stage Signal Processing with Super Anti-Jamming
· Chopper Bipolar constant current drive with non-Resonant Region - Controls motors Smoothly through range without Creep Effect
· Four Control inputs (Divided into pairs of Knives) - android.permission setting of limit and Emergency stop
· Universal Architecture - Supports MOST Parallel Software MACH3, KCAM4, EMC2 etc!
Dip settings:
Current Setting |
1 |
2 |
Decay Mode Settings |
3 |
4 |
MicroStep Settings |
5 |
6 |
100% |
ON |
ON |
FAST |
ON |
ON |
1 |
ON |
ON |
75% |
OFF |
ON |
25% |
ON |
OFF |
1/2 |
ON |
OFF |
50% |
ON |
OFF |
50% |
OFF |
ON |
1/8 |
OFF |
OFF |
25% |
OFF |
OFF |
SLOW |
OFF |
OFF |
1/16 |
OFF |
ON |
